Building & Construction

Infra Industries Ltd. has been servicing the building and construction industry since 1991.

We provide a wide array of solutions for our customers within this segment, primarily for storage of water, above and below the ground.

Product Offering:

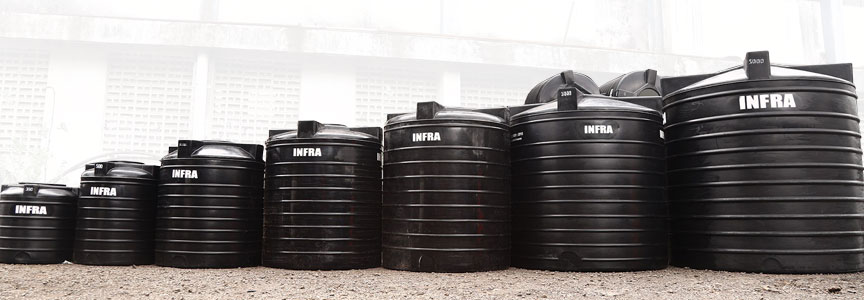

Overhead Water Storage Tanks:

Infra Overhead Water Storage Tanks are used for general storage of water and has wide applications across several industries.

BLACK DOUBLE LAYERED TANKS 300 Litres – 20000 Litres
COLOURED MULTI-LAYERED TANKS 300 Litres – 20000 Litres
MULTI-LAYERED FOAM TANKS 300 Litres – 5000 Litres

MULTI-LAYERED FOAM TANKS 300 Litres – 5000 Litres

Loft Tanks:

Infra Loft Tanks are used to store water indoors in bedrooms and kitchens.

Code Capacity
(Ltrs.)
Lenght Width Height
mm inch mm inch mm inch
LIT-15-1 150 920 36.50 455 18.00 420 17.00
LIT-22-1 220 1030 41.00 765 30.25 300 12.00
LIT-25-1 250 840 33.00 720 28.50 445 18.00
LIT-30-1-12 300 1200 47.25 865 34.00 300 12.00
LIT-30-2-17 300 1270 50.00 620 24.50 420 16.75
LIT-35-1 350 1220 48.00 910 36.00 335 13.50
LIT-40-1 400 1220 48.00 840 33.00 410 16.25
LIT-45-1 450 1300 51.25 900 35.50 390 15.50
LIT-50-1-12 500 1580 62.25 1145 45.00 315 12.50
LIT-50-2-16 500 1475 58.00 920 36.25 410 16.25
LIT-50-3-22 500 1215 48.00 910 36.00 530 21.00
LIT-65-1 650 1615 63.75 910 36.00 530 21.00
LIT-72-1 725 1520 60.00 910 36.00 535 21.00
LIT-80-1 800 1520 60.00 910 36.00 610 24.00
LIT-100-2-25 1000 1645 65.00 1140 45.00 615 24.25
LIT-100-1-26 1000 1820 72.00 890 35.00 625 25.00

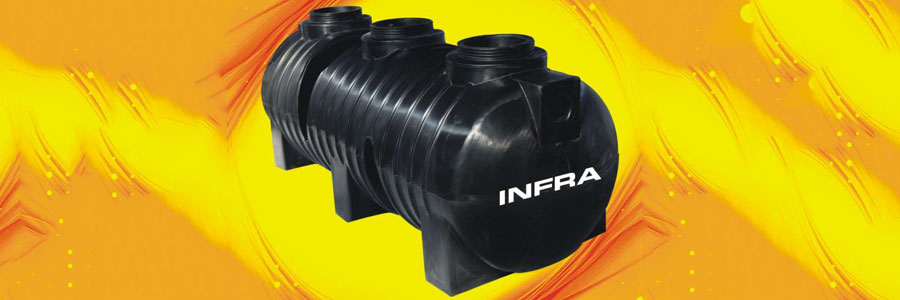

Septic Tanks:

Infra Septic Tanks are used for collecting sewage and carries wide applications

across various industries such as housing, restaurants, construction sites,resorts, golf courses etc.

SINGLE LAYERED TANKS 850 Litres – 1100 Litres

Applications:

  • Septic tanks are used below the ground for single and multiple household apartments, Roadside Dhada & Restaurants, Construction site & industries, Resorts & Golf Course.
  • Multiple Individual Septic tank can be installed.

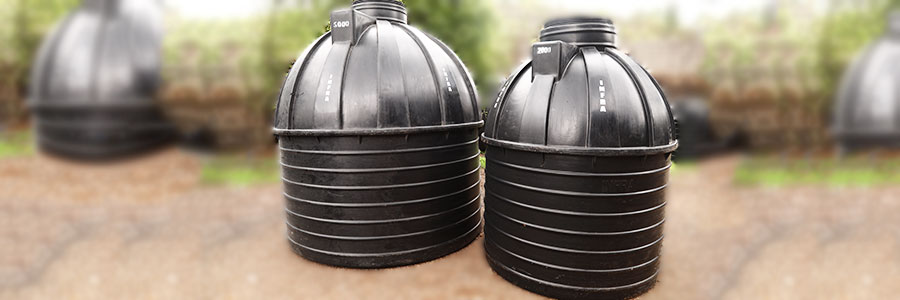

Sump/Underground Tanks:

Infra Sump/Underground tanks are used to store clean water both above and

below the ground. It has wide applications such as rain water harvesting,

increasing the ground water table and general storage of water in urban developments.

SINGLE LAYERED TANKS 2000 Litres & 5000 Litres
DOUBLE LAYERED TANKS 2000 Litres & 5000 Litres

Applications:

  • To Store Clean Water below or above the ground.
  • For rain water harvesting
  • Substantial storage below the ground, not compromising aesthetics.
  • Multiple tank can be installed with good quality interconnection to store additional capacity of water To increase ground water table.

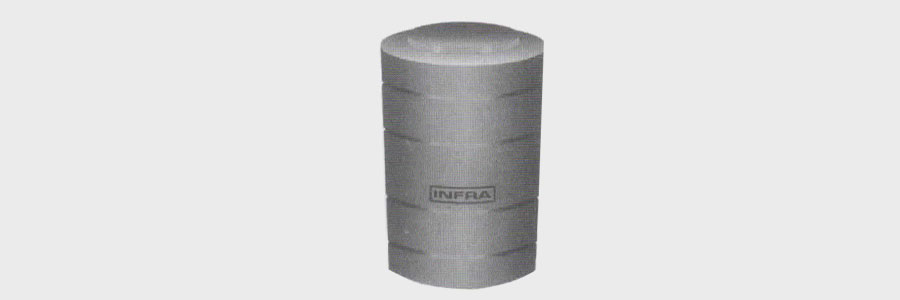

House Hold Drums (HIT):

HIT
Code Capacity Diameter Height
(Ltrs.) mm inch mm inch
HIT-10-1 100 450 18.00 710 28.00
HIT-15-1 150 520 20.50 760 30.00
HIT-22-1 225 560 22.00 960 38.00
